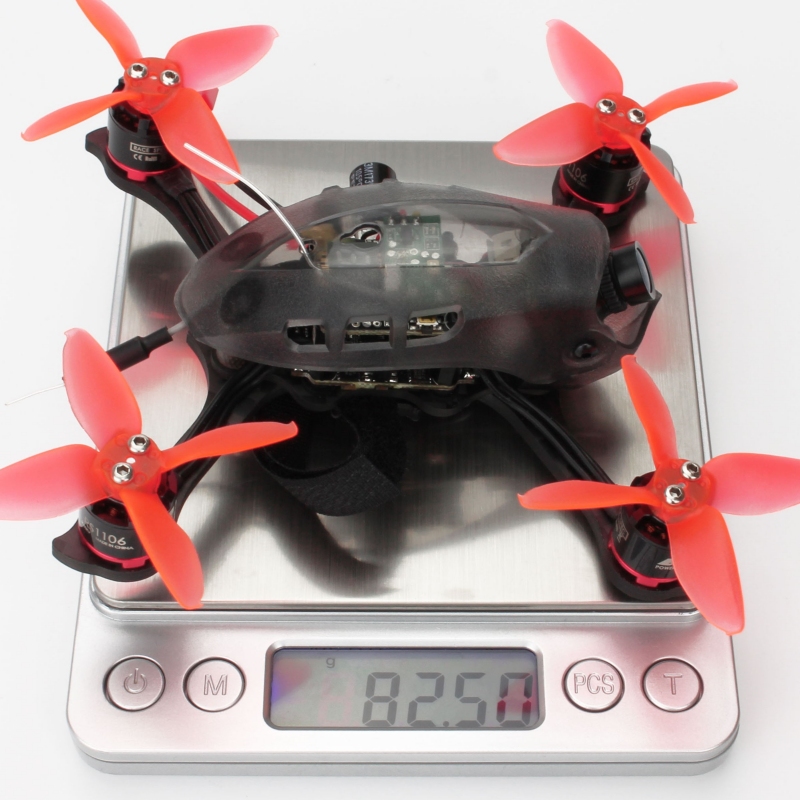

2 Inch Version

emax babyhawk-r 2 inch 3 inch 2inch 3inch review mods vs comparison diatone gt-90 gt-m3_01 sq12 mini hd cam frsky xm+ 16ch fx power 3s 4s mods modding emax babyhawk-r 2 inch 3 inch 2inch 3inch review mods vs comparison diatone gt-90 gt-m3_01 sq12 mini hd cam frsky xm+ 16ch fx power 3s 4s mods modding

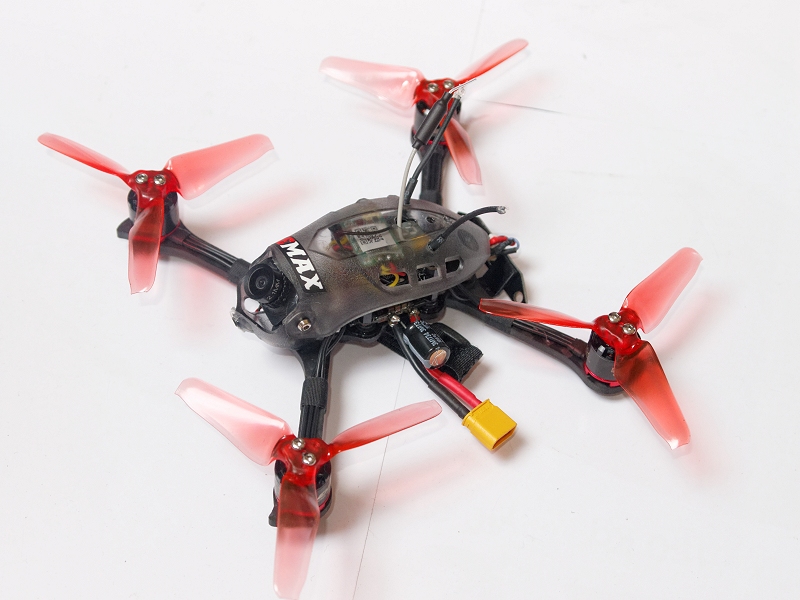

3 Inch Version

emax babyhawk-r 2 inch 3 inch 2inch 3inch review mods vs comparison diatone gt-90 gt-m3_01 sq12 mini hd cam frsky xm+ 16ch fx power 3s 4s mods modding emax babyhawk-r 2 inch 3 inch 2inch 3inch review mods vs comparison diatone gt-90 gt-m3_01 sq12 mini hd cam frsky xm+ 16ch fx power 3s 4s mods modding

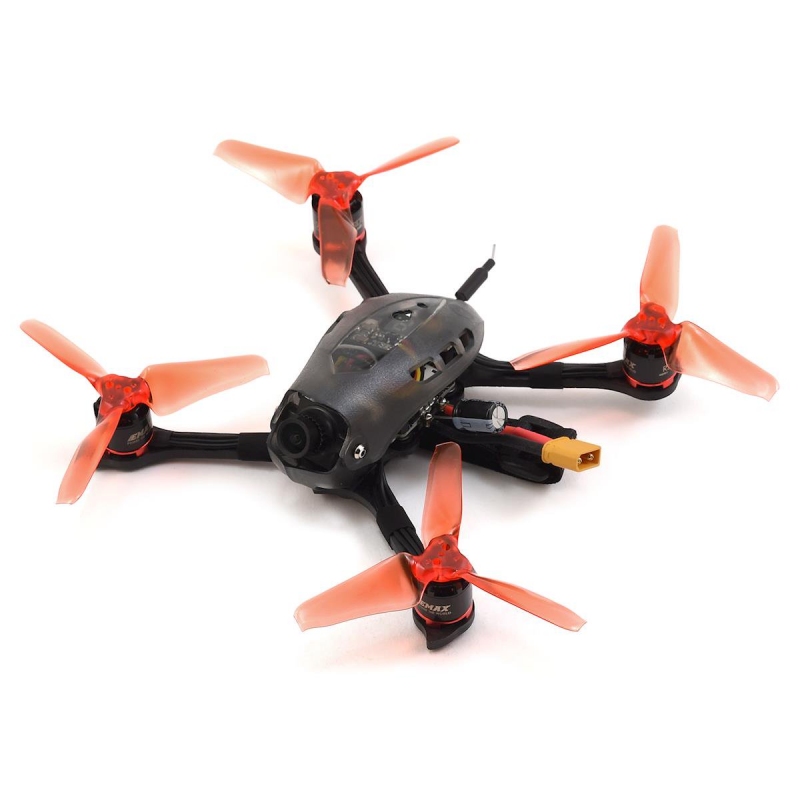

2 Inch Version

emax babyhawk-r 2 inch 3 inch 2inch 3inch review mods vs comparison diatone gt-90 gt-m3_01 sq12 mini hd cam frsky xm+ 16ch fx power 3s 4s mods modding emax babyhawk-r 2 inch 3 inch 2inch 3inch review mods vs comparison diatone gt-90 gt-m3_01 sq12 mini hd cam frsky xm+ 16ch fx power 3s 4s mods modding

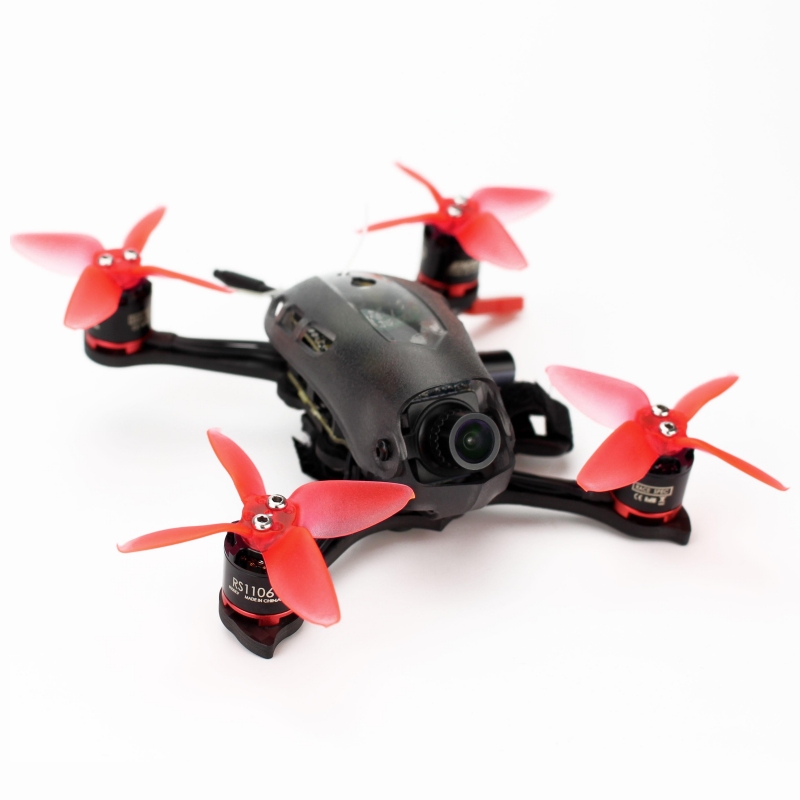

2 Inch Version

emax babyhawk-r 2 inch 3 inch 2inch 3inch review mods vs comparison diatone gt-90 gt-m3_01 sq12 mini hd cam frsky xm+ 16ch fx power 3s 4s mods modding led strip foxeer micro arrow mike vom mars blog emax babyhawk-r 2 inch 3 inch 2inch 3inch review mods vs comparison diatone gt-90 gt-m3_01 sq12 mini hd cam frsky xm+ 16ch fx power 3s 4s mods modding led strip foxeer micro arrow mike vom mars blog

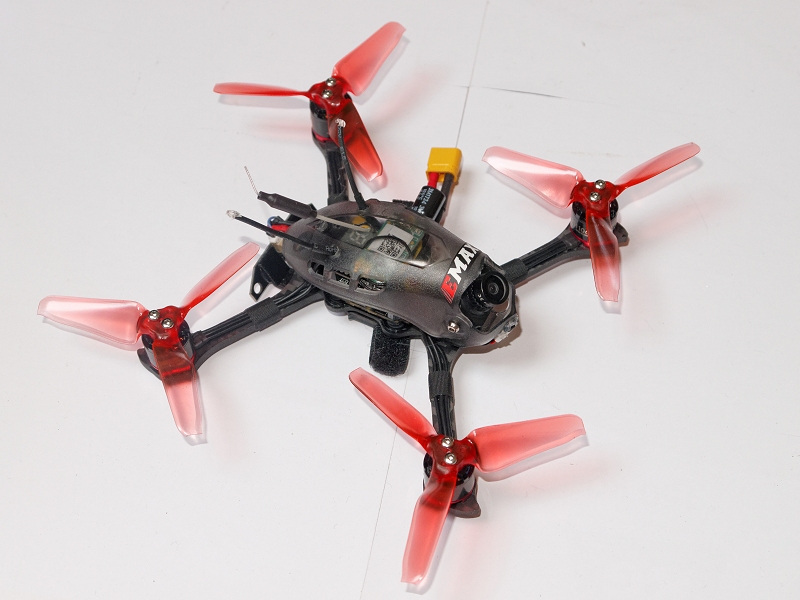

3 Inch Version

emax babyhawk-r 2 inch 3 inch 2inch 3inch review mods vs comparison diatone gt-90 gt-m3_01 sq12 mini hd cam frsky xm+ 16ch fx power 3s 4s mods modding led strip foxeer micro arrow mike vom mars blog emax babyhawk-r 2 inch 3 inch 2inch 3inch review mods vs comparison diatone gt-90 gt-m3_01 sq12 mini hd cam frsky xm+ 16ch fx power 3s 4s mods modding led strip foxeer micro arrow mike vom mars blog

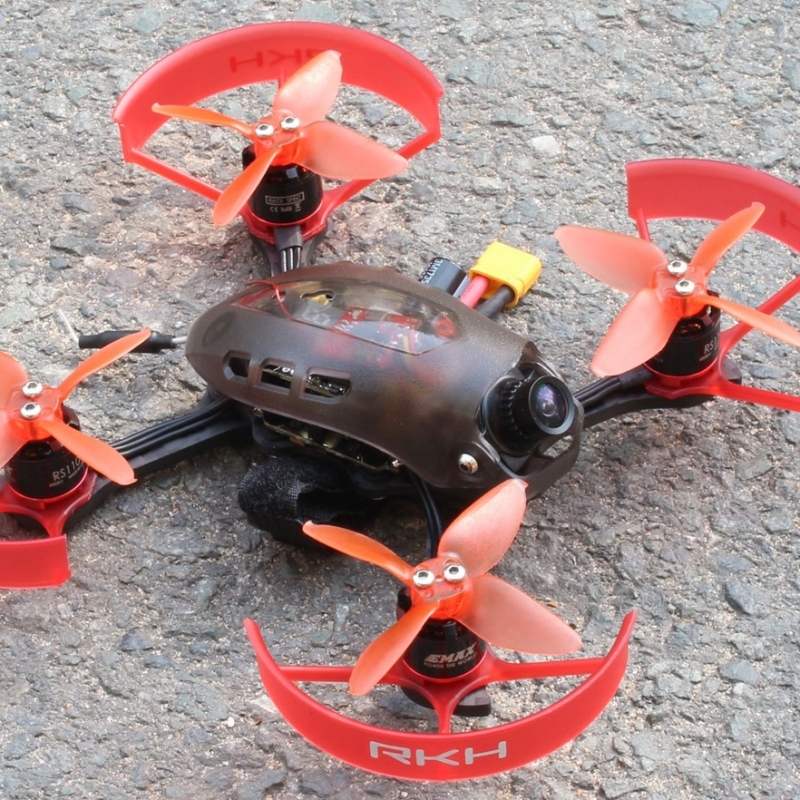

3 Inch Version

emax babyhawk-r 2 inch 3 inch 2inch 3inch review mods vs comparison diatone gt-90 gt-m3_01 sq12 mini hd cam frsky xm+ 16ch fx power 3s 4s mods modding led strip foxeer micro arrow mike vom mars blog emax babyhawk-r 2 inch 3 inch 2inch 3inch review mods vs comparison diatone gt-90 gt-m3_01 sq12 mini hd cam frsky xm+ 16ch fx power 3s 4s mods modding led strip foxeer micro arrow mike vom mars blog

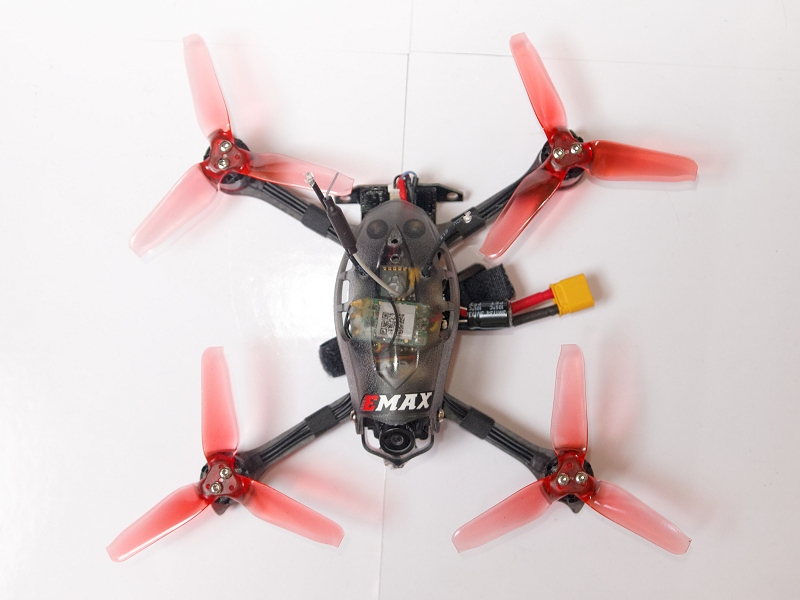

3 Inch Version

Ultimate Responsive Image Slider Plugin Powered By Weblizar

Since 2017 some really ingenious Mini FPV racers came onto the market – especially the Leader 120. But since then a lot has changed again, and there are some new FPV racers that also have what it takes to become a cult racer. Here’s the Babyhawk-R.

Most Mini Quads 2018 have one thing in common: they become more and more omnivores and swallow not only 2S Lipos, but meanwhile also 3S or even 4S! The Lizard95 already shows impressively how much power you can get out of a 3S Lipo with a mini FPV racer. The Babyhawk, especially the 3-inch version, is even designed for 4S.

Babyhawk-R: Three Versions

The EMAX Babyhawk-R can be flown with 3S or 4S Lipos and has a lot of features, so you don’t have to do much modding anymore. It comes in two variations (well, actually three):

2 inch version (112mm)

3 inch version (136mm)

as well as a 2.5 inch version (actually the 2 inch version with “upgrade” frame)

The 2.5 inch version is a modified 2 inch version with 2.5 inch arms, which allows you to install larger propellers. The 2 inch version flies quite lively and is generally designed for 3S, while the 3 inch version allows a slightly longer flight time and also easily carries the extra weight of a 4S lipo. The modded 2.5 inch version is somewhere in between.

Which variant you choose is up to your personal taste. The equipment is very much the same for the 2 inch and the 3 inch version and differs only in the frame size, the propeller size and the motors. In general one can say that the 2 inch version is rather designed for 3S and the 3 inch version flies quite well with 4S. For the 2 inch version a 4S Lipo would be a bit too big and heavy – but you can do so, if you want to.

The 3 inch version comes with EMAX RS1106 4500KV motors and 3 inch EMAX AVAN Mini Props, the 2 inch version with Emax RS1106 6000KV motors and Emax Avan Micro 2 inch 4-Blade Props:

EMAX Babyhawk-R Versions:
2 Inch3 Inch
Emax Avan Micro 2 Inch 4-Blade PropsMAX AVAN Mini 3 Inch 3-Blade Props
Emax RS1106 6000KV MotorsEMAX RS1106 4500KV Motors
3S Lipo suggested4S Lipo suggested
Size: 112mmSize: 136mm
Flies more agileLonger flight times

Design

emax babyhawk-r 2 inch 3 inch 2inch 3inch review mods vs comparison diatone gt-90 gt-m3_01 sq12 mini hd cam frsky xm+ 16ch fx power 3s 4s mods modding



The design of the EMAX Babyhawk-R is very unusual – almost unique. The screwed-on hood makes it look beautifully streamlined. In any case a real eye-catcher!

Advantage: under the cover the electronic insides of the Babyhawk are very well protected. So it’s definitely a plus. The hood is fixed with two screws and can be removed relatively quickly. The hood is available in three colors – black, red and transparent white – and is also available separately for a few bucks.



Equipment

The video transmitter can be switched between 25mW and 200mW ouput power, providing sufficient power for interference-free transmission. In addition, the Babyhawk-R has a Foxeer Arrow Micro CCD camera built-in, which is almost equal to a Runcam Micro Swift. Just like the Runcam Micro, the Foxeer Cam also offers a quite extensive OSD menu with which you can adjust colors, exposure, contrast, sharpness etc. down to the last detail. The Foxeer Cam also offers WDR (Wide Dynamic Range) to compensate for large differences in brightness. The Foxeer Arrow Micro has two major advantages over a Runcam Micro: firstly, the dongle used to navigate through the OSD menu is already included with the Babyhawk-R (in contrast, it must be purchased separately for the Runcam Micro). The biggest advantage over the Runcam Micro is that the Foxeer can handle an input voltage of 5V to 40V, the Runcam Micro only 5V. Nice to see that Emax gave the Babyhawk-R a very decent cam!

What stands out about the EMAX Babyhawk-R is the Low ESR Capacitor soldered on the side. This is supposed to reduce video noise. We are not sure if this is really necessary, but unlike the Diatone Mini Racers, there is hardly any noise in the video image of the Babyhawk-R. Whether this thing really makes sense or not, you only find out if you cut it off. But it doesn’t really bother.

Compared with the Diatone GT-R90, and the Diatone GT-M3 the EMAX Babyhawk-R performs a little worse in terms of performance, but still flies brilliantly and is also available for a cheaper price. But the equipment is a bit more economical compared to the Diatones, the Babyhawk-R comes with a F3 flight controller instead of a F4.

The ESC of the Babyhawk can handle a good 12A, come with DSHOT600 and can be flashed with the very latest BLHeli_S firmware, so that DSHOT commands are also available if desired.

The Babyhawk-R’s on-board BEC delivers sufficient power with 3A – even the installation of an LED strip should pose no problem. A buzzer is also installed – this inconspicuous but vital component is often forgotten by manufacturers.

EMAX Babyhawk-R Features:
Flight ControllerOmnibus F3 Betaflight, 20x20mm (M2)
MCU STM32F303
OSD Betaflight OSD
Buzzer ✔️
BEC Integrated 5V@ 3A BEC
Receiver TypesPPM/SBUS/Spektrum DSM
ESC: BLHeli_S 12A 4-in-1 DSHOT600
Camera Micro CCD
VTX40 Channel 5.8g 25/200mw

Our Impression

Foxeer Arrow Micro
Contrary to our expectations, the Foxeer Arrow is absolutely on a par with the Runcam Micro Swift – if not superior. Once you’ve looked through the cam’s OSD and found the right settings, the video image is simply perfect in terms of contrast, sharpness, dynamic range and details. The Foxeer copes well with changes in brightness. The Foxeer always delivers a perfect picture, especially with the Wide Dynamic Range feature enabled. This makes the Babyhawk the first Mini Racer we’ve ever seen that the manufacturer has already provided us with an absolutely usable cam. Very commendable.

emax babyhawk-r 2 inch 3 inch 2inch 3inch review mods vs comparison diatone gt-90 gt-m3_01 sq12 mini hd cam frsky xm+ 16ch fx power 3s 4s mods modding

Realacc Stubby

A clear weakness is the built-in FPV antenna, which in flight often causes a drop-out. We had drop-outs of 1-2 seconds, which is not acceptable. We have therefore immediately replaced the stock cam with a Realacc Stubby, which delivers significantly better performance and less fluttering in the wind. Thanks to the IPEX connector, an antenna change is done quickly, the antenna is not soldered but clipped on and can be easily replaced.

Design & Quality
The striking design of the Babyhawk-R with its hood proves to be very practical in everyday use: the electronics are well protected in there. The hood is fixed at the front as well as at the rear with two screws. Just loosen the two rear screws and it folds forward like the bonnet of a car. The frame is very stable and can withstand a lot. The Avan Mini Props can also withstand a lot and do not break right away. The soldering points of the motor pads are not as fragile with the Babyhawk as with many other Minis, but if you like to swing the soldering iron, you can go over it again. Experience has shown that it is precisely at these points that motor cables are often disconnected by constant vibration. Here it really depends on solid soldering work.

Flight Characteristics
The agility of the Babyhawk is more comfortable – at least when compared to the Lizard95 Anniversary Edition, which shows significantly more speed and acceleration. Nevertheless, the Babyhawk 3 Inch also has enough power with 3S for a decent punch. A “Need for Speed”-feeling like with the Lizard doesn’t come up here, but the Babyhawk flies very “smooth”, pleasant and exact.

With 3S 650 mAh it flies quite well. Using a 4S 650 mAh, however, showed only 10%-15% more agility and power, but a slightly shorter flight time. This is a little disappointing, because one of the Babyhawk’s advantages should be to take 4S Lipos as well. Okay, it does – but the difference between 3S and 4S is not really worth it here. The Babyhawk-R flies best with 3S Lipo that does not bring too much weight. 4S doesn’t really seem to bring any advantages to the Babyhawk 3 Inch, unless you settle for Lipos below 500 mAh and therefore a very short flight time.

Flighttimes
The flight time of our test flights with 3S 650 mAh Lipos with aggressive flight style was just over three minutes. With a 4S 650 mAh even a little bit below. But if you like it a bit more relaxed and prefer to fly at half throttle, you can tickle with a 3S 650 Lipo about eight(!) minutes flight time out of the Babyhawk R (see video proof)!

Summary
With the Babyhawk-R you get a Mini FPV Racer with appealing optics, which comes out-of-the-box with useful equipment. You don’t have to do much modding here. The Foxeer camera is more than equal to a Runcam Micro, frame, props and hood are very stable and can withstand quite a lot. Only the FPV antenna should be replaced by a better one. Unfortunately the Babyhawk-R is not equipped with an LED strip, but corresponding pins are available on the FC board, so you can add one, if you like to. The Babyhawk-R flies very smoothly and exactly. You always have the feeling of control over it. Since it flies a little less aggressive than e.g. the Lizard95, it is very suitable as a park flyer and for pilots who do not always have to push their limits.



Babyhawk Spare Parts:
Babyhawk-R 2 Inch Version
Babyhawk-R 3 Inch Version
Foxeer Arrow Micro FPV Cam
EMAX RS1106 Motor
Babyhawk-R Spare 25mw/200mW VTX
Emax AVAN Mini 3 Inch Props
FrSky XM+ 16CH Receiver
Realacc Stubby Mini FPV Antenna
SQ12 Mini 1080p Cam
XF Power 3S 850mAh Lipo
XF Power 4S 550mAh Lipo
Babyhawk-R Hood, different colors

On the next page: Betaflight setup of the Babyhawk-R.
